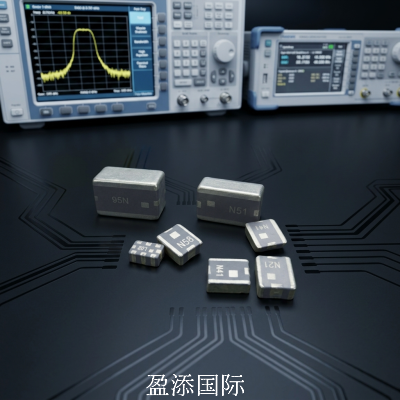

WINNSKY microwave multilayer filter LF series are designed for WLAN, WIFI, LNA, Bluetooth and cordless phones with the performance of low insertion loss, high attenuation and small size SMD chip design, which can reduce the complexity of the calibration and simplify circuit design.
| Items | Part Number |
F0 (MHz) |
I/L (dB) |
Bandwidth (MHz) |
Ripple (dB) |
Size (mm) |
Application |
| Low Pass LTCC Filter | LF43L0500H72-L32 | 500 | ≤3.5 | 100～900 | ≤1.2 | 4.5*3.2*2.0 | |
| Low Pass LTCC Filter | LF31L0575H1108-L170 | 575 | ≤1.2 | DC~575 | ≤1.8 | 3.2*1.6*0.9 | |
| Low Pass LTCC Filter | LF0800-3216A | 800 | ≤1.3 | 800-990 | ≤1.2 | 3.2*1.6*0.9 | |
| Low Pass LTCC Filter | BF0800C0990P12 | 800 | ≤1.3 | DC~800 | 3.2*1.6*0.9 | ||
| Low Pass LTCC Filter | LF43L0865H82-L24 | 865 | ≤3.3 | 5～865 | ≤1.2 | 4.5*3.2*2.0 | |
| Low Pass LTCC Filter | BF0850C1G07P12 | 875 | ≤1.3 | DC~875 | 3.2*1.6*0.95 | ||
| Low Pass LTCC Filter | LF18L0960H119-L75 | 960 | ≤0.9 | 690~960 | ≤0.2 | 1.6*0.8*0.6 | |
| Low Pass LTCC Filter | LF18L0960H105-L71 | 960 | ≤0.8 | 698~960 | ≤0.2 | 1.6*0.8*0.6 | |
| Low Pass LTCC Filter | LF18L0960H105-L70 | 960 | ≤0.7 | 699~960 | ≤0.2 | 1.6*0.8*0.6 | |
| Low Pass LTCC Filter | BF1G00C1G30P12 | 1000 | ≤1.0 | DC~1000 | 3.2*1.6*0.95 | ||
| Low Pass LTCC Filter | LF32L1000H1412-L113 | 1000 | ≤2 | DC~1000 | 3.2*2.5*1.5 | ||
| Low Pass LTCC Filter | LF21L2025H1008-L140 | 1412.5 | ≤0.5 | 800~2025 | ≤1.3 | 2.0*1.25*0.9 | |
| Low Pass LTCC Filter | LF43L1190H72-L42 | 1190 | ≤3.0 | 950～1430 | ≤1.5 | 4.5*3.2*2.0 | LNB |
| Low Pass LTCC Filter | LF43L1190H72-L51 | 1190 | ≤3.5 | 950～1430 | ≤0.6 | 4.5*3.2*2.0 | |
| Low Pass LTCC Filter | LF43L1192H72_L25 | 1192 | ≤3.5 | 950～1450 | ≤1 | 4.5*3.2*2.0 | |
| Low Pass LTCC Filter | LF43L1200P57-L01 | DC-1200 | ≤2.3 | 950～1450 | ≤1.5 | 4.5*3.2*2.2 | LNB |
| Low Pass LTCC Filter | LF1500-3216A | 1500 | ≤1.0 | DC~1500 | 3.2*1.6*0.95 | ||
| Low Pass LTCC Filter | BF1G70C2G05P12 | DC-1700 | ≤1.2 | 0~1700 | ≤0.25 | 3.2*1.6*0.95 | |
| Low Pass LTCC Filter | LF18L1910H104-L67 | 1910 | ≤0.8 | 1710~1910 | ≤0.2 | 1.6*0.8*0.6 | |
| Low Pass LTCC Filter | LF18L1990H104-L68 | 1990 | ≤0.7 | 1710~1990 | ≤0.2 | 1.6*0.8*0.6 | |
| Low Pass LTCC Filter | LF18L2025H107-L85/K | 2025 | ≤1.2 | 1880~2025 | 1.6*0.8*0.6 | ||
| Low Pass LTCC Filter | LF21L2025H108-L73 | 2025 | ≤1.35 | 1880~2025 | ≤0.2 | 2.0*1.25*0.9 | |
| Low Pass LTCC Filter | LF18L2170H107-L72 | 2170 | ≤0.6 | 1880～2170 | ≤1.4 | 1.6*0.8*0.6 | |
| Low Pass LTCC Filter | LF18L2170H107-L72/M | 2170 | ≤1.5 | 1880～2170 | 1.6*0.8*0.6 | ||
| Low Pass LTCC Filter | LF15L2180H108_L74 | 2180 | ≤0.6 | 1695~2180 | ≤10.1 | 1.0*0.5*0.5 | |
| Low Pass LTCC Filter | LF18L2450H83-L17 | 2450 | ≤0.48 | DC~2450 | ≤0.3 | 1.6*0.8*0.6 | |
| Low Pass LTCC Filter | LF21L2450H57-L02 | 2450 | ≤1.2 | 2400～2500 | ≤0.5 | 2.0*1.25*0.9 | Bluetooth,WLAN |
| Low Pass LTCC Filter | LP18L2450H93-L56 | 2450 | ≤1.0 | 2400～2500 | 1.6*0.8*0.6 | ||
| Low Pass LTCC Filter | LF15L2450H64-L131 | 2450 | ≤0.45 | 2400～2500 | ≤0.5 | 1.0*0.5*0.4 | |
| Low Pass LTCC Filter | LF18L2500H71-L61 | 2500 | ≤0.42 | DC~2450 | ≤0.2 | 1.6*0.8*0.6 | |
| Low Pass LTCC Filter | LF21L2500H83-L63 | 2500 | ≤0.5 | DC~2450 | 2.0*1.25*0.9 | ||
| Low Pass LTCC Filter | LF18L2690H87-L54 | 2690 | ≤0.5 | 673～2690 | ≤0.2 | 1.6*0.8*0.6 | |
| Low Pass LTCC Filter | BF0G69C3G80P3 | 698-3800 | ≤0.48 | 698-3800 | 1.6*0.8*0.6 | ||
| Low Pass LTCC Filter | LF18L3800H83-L77 | 3550 | ≤0.6 | DC~3550 | ≤0.4 | 1.6*0.8*0.6 | |
| Low Pass LTCC Filter | LF21L5512P44-L06 | 5512 | ≤1.6 | 5150～5875 | ≤0.5 | 2.0*1.25*0.95 | Mimo |
| Low Pass LTCC Filter | LF21L5875H73-L64 | 5875 | ≤0.6 | 5150～5875 | ≤0.2 | 2.0*1.25*0.95 |
----------------------------------------------------------------------------------------------------------------
Notice:
The table shows parameter for partial models. For more information, please contact us by sales@winnsky.com.
For almost all products, we can customize according to the client requirement. Please share your detailed requirement when you are in touch with us.
