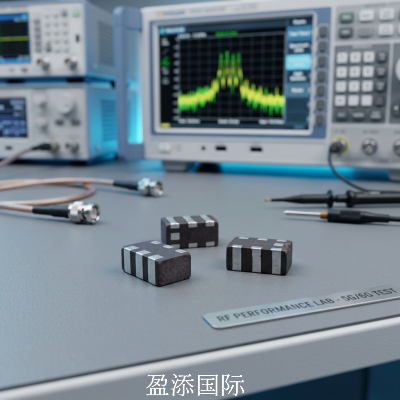

WINNSKY microwave multilayer filter LF series are designed for WLAN, WIFI, LNA, Bluetooth and cordless phones with the performance of low insertion loss, high attenuation and small size SMD chip design, which can reduce the complexity of the calibration and simplify circuit design.
| Items | Part Number |
F0 (MHz) |
I/L (dB) |
Bandwidth (MHz) |
Ripple (dB) |
Size(mm) | Application |
| High Pass LTCC Filter | LF18H5375H54-H46 | 5375 | ≤0.6 | ±475 | ≤1.5 | 1.6*0.8*0.6 | Mimo |
| High Pass LTCC Filter | LF31H6100P44-H14 | 6100 | ≤2.0 | ±450 | ≤1.5 | 3.2*1.6*1.2/1.4 | LNB |
| High Pass LTCC Filter | LF31H6900P44-H15 | 6900 | ≤2.0 | ±700 | ≤1.5 | 3.2*1.6*1.2/1.4 | LNB |
| High Pass LTCC Filter | LF31H8500P33-H16 | 8500 | ≤2.0 | ±1000 | ≤1.5 | 3.2*1.6*1.2/1.4 | LNB |
